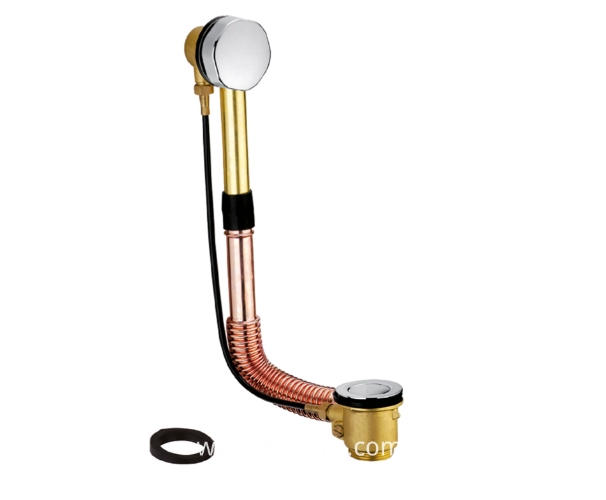

What does a bathtub drain trap look like?

2024 01/02

A bathtub drain trap is an essential component of the plumbing system that prevents sewer gases from entering the bathroom. It is typically located beneath the bathtub and serves as a barrier between the waste water and the sewer line. The drain trap is designed to trap a small amount of water in its curved section, which acts as a seal to prevent gases from coming back up the drain.

The shape and design of a bathtub drain trap can vary slightly, but it typically consists of a U-shaped or P-shaped pipe that connects the drain outlet to the sewer line. The most commonly used type of bathtub drain trap is a P-trap, named after its distinctive shape resembling the letter "P". However, U-shaped traps are also widely used and function in a similar manner.

A P-trap consists of a horizontal section that connects directly to the drain outlet, followed by a downward curve that forms the "P" shape, and then a vertical section that connects to the sewer line. The horizontal section of the P-trap is positioned higher than the outlet, allowing waste water to accumulate and create a water seal. This water seal prevents the passage of sewage gases into the bathroom, as the water acts as a barrier.

In contrast, a U-shaped trap consists of a downward curve that connects directly to the drain outlet and a upward curve that connects to the sewer line. Similar to a P-trap, a U-trap holds a small amount of water in its curve to create a water seal, preventing the entry of sewer gases.

Both types of traps are typically made of plastic or metal, such as PVC or brass, which are resistant to corrosion and provide durability. They are easy to install and maintain, and are designed to be easily accessible for cleaning or removing clogs.

In addition to their functional purpose, bathtub drain traps can also be equipped with additional features, such as clean-out plugs or access ports. These allow for easier maintenance and removal of debris or blockages.

Overall, the appearance of a bathtub drain trap may vary depending on the type of trap and the specific plumbing system. However, regardless of the design or material used, the primary purpose of a drain trap is to create a water seal and prevent the escape of sewer gases into the bathroom.
